Double Countersunk Head Pull Through Rivets

Head Type

  • Double Countersunk Head

Material

  • Carbon Steel

Surface

  • Zinc Plated

Custom Pull Rivets for your Project

Technical Parameters of Pulled Rivets

Diameter[d] Size Body Length [L] Grip Range Drill dk k Tensile Shear
2.4(3/32") 2.4×2.1 1.9-2.3 1.3-1.8 2.5-2.6 3.8±0.2 0.7±0.1 500N 600N
2.4×2.4 2.2-2.6 1.6-2.0
2.4×2.8 2.6-3.0 2.0-2.5
2.4×3.3 2.1-3.5 2.5-3.0
2.4×3.8 3.6-4.0 3.0-3.5
2.4×4.3 4.1-4.5 3.5-4.0
2.4×4.8 4.6-5.0 4.0-4.5
2.4×5.3 5.1-5.5 4.5-5.0
2.4×5.8 5.6-6.0 5.0-5.5
2.4×6.3 6.1-6.5 5.5-6.0
3.0(7/61") 3.0×2.3 2.0-2.6 1.5-2.0 3.1-3.2 4.9-5.4 0.7-0.98 700N 800N
3.0×2.8 2.5-3.1 2.0-2.5
3.0×3.3 3.0-3.6 2.5-3.0
3.0×3.8 3.5-4.1 3.0-3.5
3.0×4.3 4.0-4.6 3.5-4.0
3.0×4.8 4.5-5.1 4.0-4.5
3.0×5.3 5.0-5.6 4.5-5.0
3.0×5.8 5.5-6.1 5.0-5.5
3.0×6.3 6.0-6.6 5.5-6.0
3.2(1/8") 3.2×2.1 1.8-2.4 1.3-1.8 3.3-3.4 4.9-5.4 0.7-0.95 800N 900N
3.2×2.4 2.1-2.7 1.6-2.0
3.2×2.8 2.5-3.1 2.0-2.5
3.2×3.3 3.0-3.6 2.5-3.0
3.2×3.8 3.5-4.1 3.0-3.5
3.2×4.3 4.0-4.6 3.5-4.0
3.2×4.8 4.5-5.1 4.0-4.5
3.2×5.3 5.0-5.6 4.5-5.0
3.2×5.8 5.5-6.1 5.0-5.5
3.2×6.3 6.0-6.6 5.5-6.0

Reply within 12 Hours

Send us a message if you have any questions or request a quote. We will be back to you ASAP!

Location
Room 9016 of 2# Building, No. 436 Changjiang Road, Suzhou City, Jiangsu Province, China 215011

Whatsapp

+86 189 6230 4392

or write

manufacture@world-rivet.com

CONTACT PERSON SEARCH

How to Install Pulled Rivets?

One of the best features of blind rivets is that they are quick and easy to install.

Installing pull rivets also requires no specialized skills.

Just need to prepare a professional riveting tool.

The riveting process can be completed with a simple operation.

Advantages of Rivmate Pull Rivets

  • Double Countersunk Head Design
  • Can be used for insertion on both sides of the workpiece
  • Draw mandrel coreless nail head design
  • No nail heads to fall off
  • Flat surface on both sides of the workpiece after riveting is completed
  • Good rust and corrosion resistance
  • Not easily deformed, easy to use

Double Countersunk Head Pull Through Rivets are designed for products that require flatness on both sides after riveting. Therefore, the rivets have countersunk holes on both sides of the workpiece.

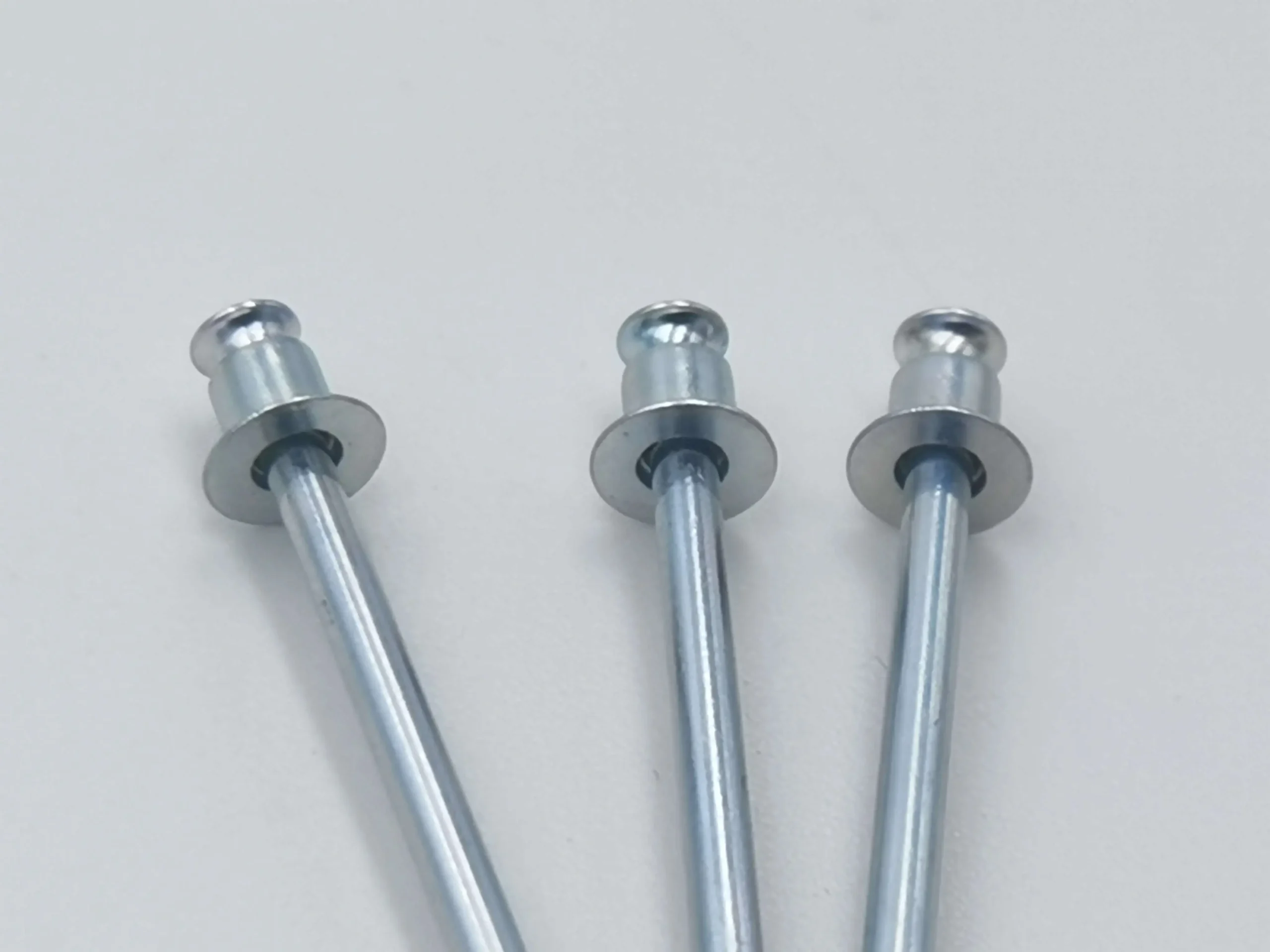

double countersunk head pull rivets

Double Countersunk Head Design

Ensure the integrity and smoothness of both sides of the workpiece after riveting.

pull through blind rivet

Rivet Mandrel Design

Unique nailhead design. Ensure that the bottom of the rivet body riveted fully flanged, fully play a tightening effect.

pull blind rivet

Center hole Is Empty Design

No nail head falling off after riveting. Avoid bad cleanup when working in tight spaces

Applications of Double Countersunk Head Pull Through Rivets
  • Highspeed Rail
  • Shelf for Goods
  • Cabinet
  • Container (for shipping)
  • Ocean Liner
  • Facade
  • Motor Vehicles
  • Car Seat
  • Railroad Track
  • Towed Vehicle

Frequently Asked Questions About Pull Rivets

The exact production cycle is less easy to determine. This needs to be based on the quantity and specifications of your order.

When you find us to give you our professional services, it will go through several stages:

  1. Confirm the order and determine the specification quantity.
  2. Processing production. After ten production processes to ensure the high quality of the product.
  3. Quality check and packaging. We have thirteen inspection processes to ensure that our products meet specifications and quality requirements.
  4. Delivery. Choose the delivery method according to your requirements and have the product delivered to you.



The cost of rivets is determined by a number of factors. For example, specifications, material, finish, quantity, etc.

Advantages :

  • Quick installation. Reduced riveting time. Saves riveting labor costs.
  • Pull rivets are less expensive than bolts and welds.
  • Suitable for thin sheet materials.

Rivmate is ITAF 16949:2016 fastener manufacturer in china.

And it is ISO certified.We have a professional technical team for quality testing. Make sure our products meet the requirements of the application.

Pulled Rivets are widely used in the process of automobile manufacturing because of their light weight.

  • Body assembly.Attaches to doors, engine hey, roof, etc.
  • Interior assembly.Such as connecting parts such as seats, dashboards, center consoles, etc.
  • Chassis and suspension.
  • Engine and drivetrain.
  • Shields and exterior parts.

We have a professional technical team to provide you with technical support. From order generation, we will provide one-on-one service to secure your order throughout the process.

We also offer customization of our products. We believe you can find all the products you need at Rivmate.
