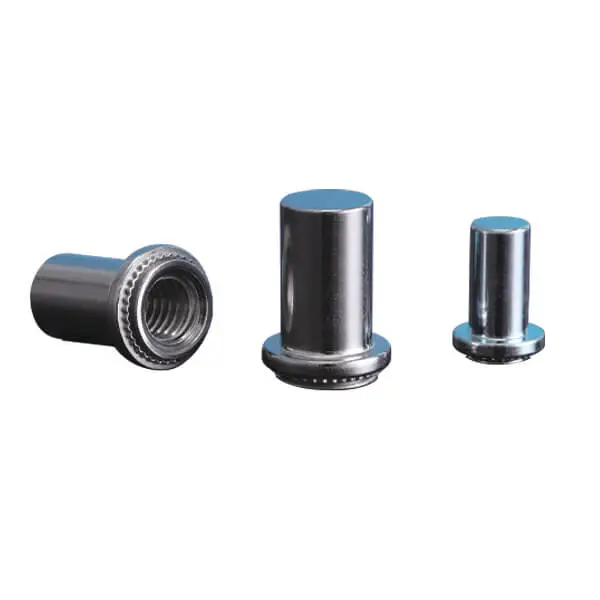

Self-Waterproof Nuts

Self Waterproof Blind Clinch Nut Material

  • Carbon Steel
  • Stainless Steel

Thread Size

  • M3 – M8



Technical Specification of Waterproof Blind Self Clinching Nuts

Thread Size Thread Code Shank Code A Max. Min Sheet Thickness Hole Size in Sheet +0.08 Min Dist Hole To Edge
M3×0.5 M3 1 0.97 1.0 4.22 4.8
2 1.38 1.4
M4×0.7 M4 1 0.97 1.0 5.4 6.9
2 1.38 1.4
M5×0.8 M5 1 0.97 1.0 6.35/6.4 7.1
2 1.38 1.4
M6×1.0 M6 1 1.38 1.4 8.75 8.6
2 2.21 2.3
M8×1.25 M8 1 1.38 1.4 10.5 9.7
2 2.21 2.3
Thread Size Thread Code Shank Code A Max. Min Shear Thickness Hole Size in Sheet +0.08 Min Dist Hole To Edge
.112-40(#4-40) 440 1 0.038 0.040 0.166 0.19
2 0.054 0.056
.138-32(#6-32) 632 1 0.038 0.040 0.188 0.22
2 0.054 0.056
.164-32(#8-32) 832 1 0.038 0.040 0.213 0.27
2 0.054 0.056
.190-32(#10-32) 32 1 0.038 0.040 0.250 0.28
2 0.054 0.056
.250-20(1/4-20) 420 1 0.054 0.056 0.344 0.34
2 0.087 0.090
